MeshPort Red

Part no: MP-03
$199.00
MeshPort Red

MeshPort Red

Part no: MP-03
$199.00
description
What is included

INTEGRATE SMARTPHONES OR TABLET PCS INTO ONSITE COMMUNICATION
Connect any Bluetooth-enabled smartphone or tablet PC and communicate with any Sena headset with Mesh Intercom™ capabilities, such as Tufftalk M. The MeshPort Red adapter provides any work environment with secure communication, multiplex conversations, and hands-free use. Smartphones and tablets can become part of the onsite team communication by allowing cellular or Wi-Fi devices to access the mesh network with the VoIP protocol.

CONNECT OFFSITE COMMUNICATION TO WORKSITE TEAMS

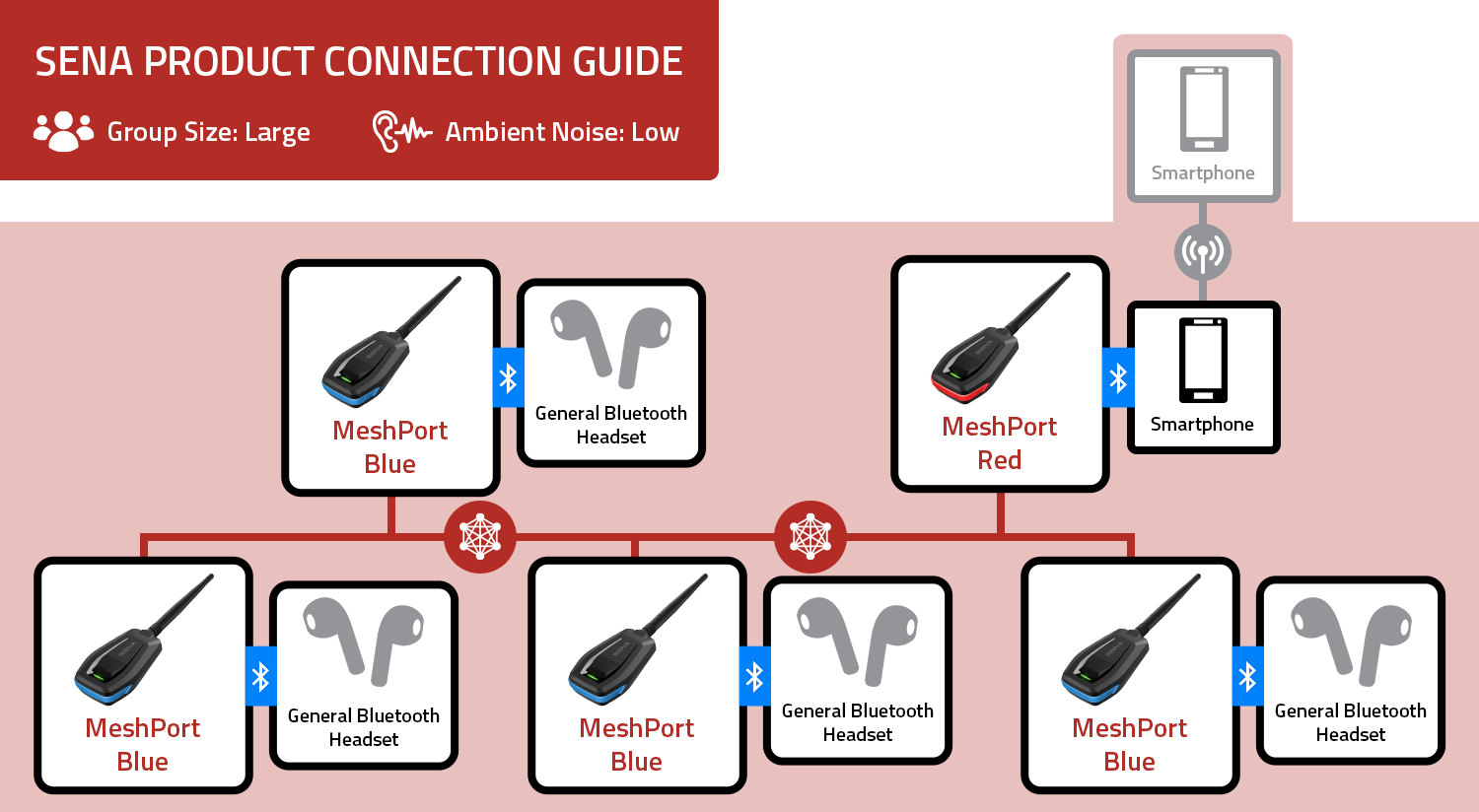

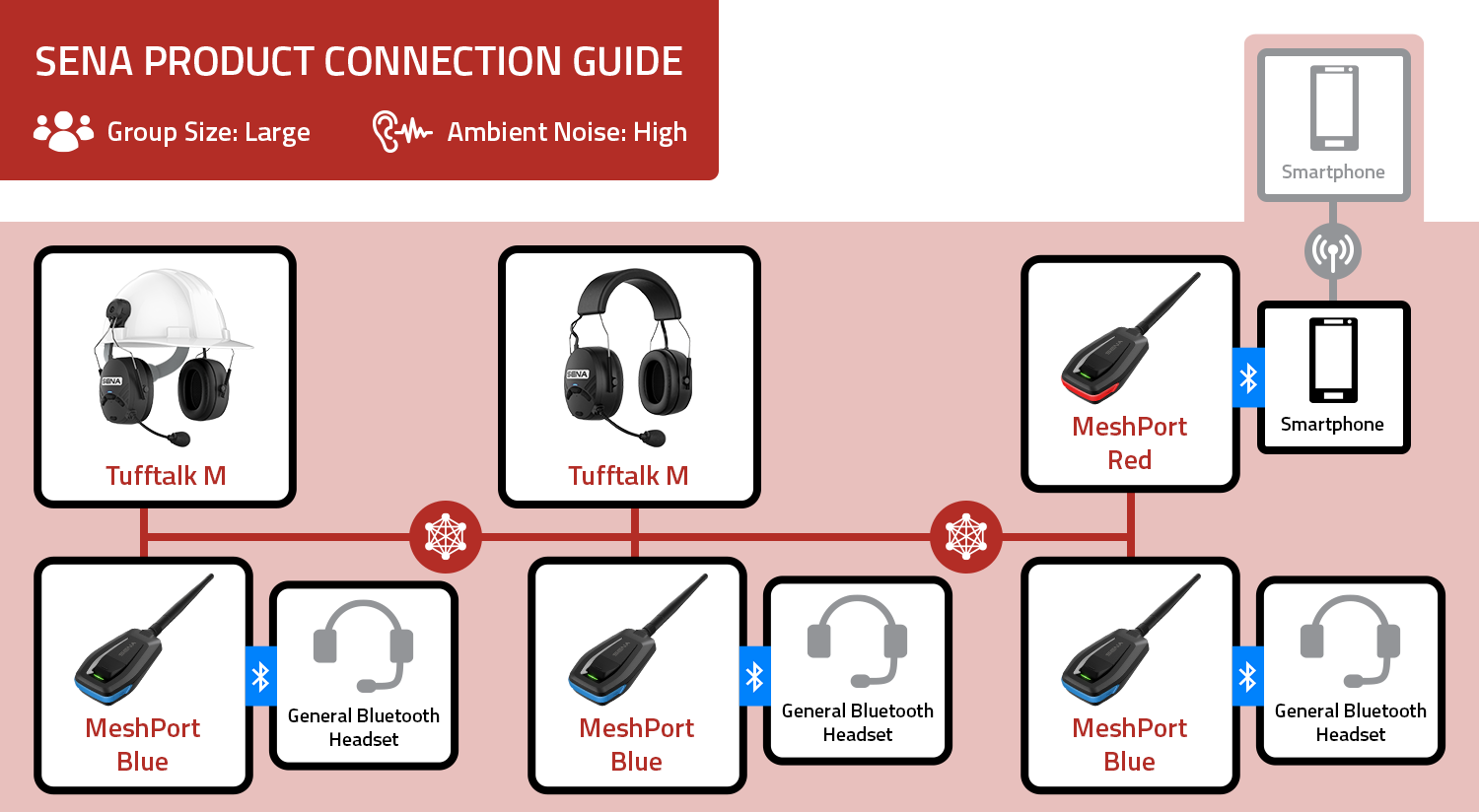

Offsite personnel can communicate to teams at worksites or on the shop floor seamlessly via cellular networks or Wi-Fi connected to a MeshPort enabled network. Using a cell phone as a gateway to connect to the MeshPort Red onsite, outside groups can become connected to the Mesh Intercom™ network and speak directly to the onsite team. MeshPort Red becomes a bridge to the outside cellular network allowing for greater business communications within the overall work network environment.

CREATE VALUE ADDED SOLUTIONS FOR INDUSTRIAL APPLICATIONS
More and more, handheld and tablet devices are being integrated into workplace environments to access data, run applications that draw on the data processing power of smartphone or tablet PC devices, or simply to help train workers from a distance. To integrate these devices, the new Meshport Red provides a mesh interface for the user's application needs. That is why systems integrators and manufacturing directors find Meshport Red as a valuable tool when building a custom solution for their work teams

  • MeshPort Red Main Module
  • USB Power & Data Cable
  • Belt Clip Mount
  • Rubber Strap Mount
  • Flat Surface Mount

Product Focus

  • Mesh Networking

    Robust and reliable communication network.

  • Bluetooth 5.0

    Bluetooth Low Energy for connecting to mobile devices.

  • Intercom 800 M / 0.5 MI

    Maximum distance operating within optimal conditions.

  • Mesh 2.0 Device Adapter

    Integrate remote mobile devices into workplace communications.

Rugged, proven performance

Learn how Sena can meet your communication needs.
Download the Application Data Sheet.

Download PDF

Technical Specifications

GENERAL

Dimensions:

45 mmx 187 mm x 26 mm (1.8 in x 7.4 in x 1.0 in)

Weight:

60 g (2.11 oz)

Operating temperature:

-10˚C - 55˚C (14°F - 131°F)

BLUETOOTH

Bluetooth 5.0

Headset Profile (HSP)

Hands-Free Profile (HFP)

MESH INTERCOM

Working distance:

up to 0.8 km (0.5 mi) in open terrain*
*Can extend up to 3.0 km (1.9 miles) between a minimum of 6 users

Supports Channels:

9 channels

AUDIO

Noise gate

Sample rate of 16kHz (wideband), 8kHz (narrowband)

BATTERY

Talk time:

up to 8 hours

Standby time:

250 hours

Charging time:

2 hours

Lithium polymer

3.8V, 1200mA

CERTIFICATES

CE, FCC, IC, KC NCC, JAPAN MIC

Support

Sena Device Manager

Instructions for Firmware Update

Step 1: Download

Download and install the Sena Device Manager on your computer.


Step 2: Update

Update the firmware of your Sena product with the Sena Device Manager.


MS Windows 32-Bit (Windows 7 or Later)

MS Windows 64-Bit (Windows 7 or Later)

Mac OSX (Mac OS 10.8 or later)

Firmware Histories

v1.4.2 October 17, 2023

  • Can connect to the Sena MeshPort App when in Repeater Mode
  • Changed the LED from flashing green 2 times to flashing green 3 times while in Repeater Mode


v1.41     July 14, 2023

  • Minor bug fix with the LED turning blue while in Repeater Mode.


v1.4     October 27, 2021

  • Updated the version of Mesh 2.0


v1.3     October 19, 2020

  • Added Mic On/Off setting


v1.2     September 22, 2020

  • Improved audio quality and battery performance during Mesh Intercom


v1.1.1 June 10, 2020

  • Added support for the MeshPort App
  • Added Mesh volume and channel settings
  • Added Mesh Adapter Mode
  • Minor bug fix with the power not automatically turning off when the microUSB cable is disconnected after updating the firmware


v1.0     June 3, 2020

  • Initial Release

Mobile App

MeshPort App



Documents

Declarations of Conformity

Download
